QTX Stereo Mini Line Level Mixer

STMM4		2IN STOCK
Log in for prices

Product Details

Product Details Specification

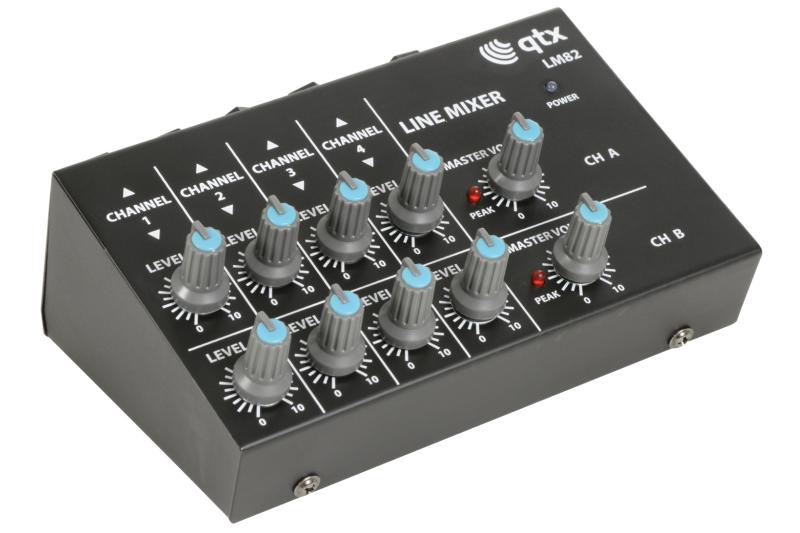

QTX 4 Way Stereo Mini Line Level Mixer

Compact mixer with high impedance jack inputs suitable for auxiliary line level or instruments, mixing to a master jack output with separate volume controls for each input and master output.

Perfect for musicians, sound engineers, and AV setups, this compact mini line level mixer is designed for flexibility and portability.

Key Features:

4-Channel Compact Mixer

Choose from 4 mono or 4 stereo inputs, each with individual volume control for precise sound mixing.

Multiple Power Options

Operates via a standard 9V (PP3) battery or optional 12V DC power adaptor – ideal for mobile or fixed installations.

High Impedance Jack Inputs

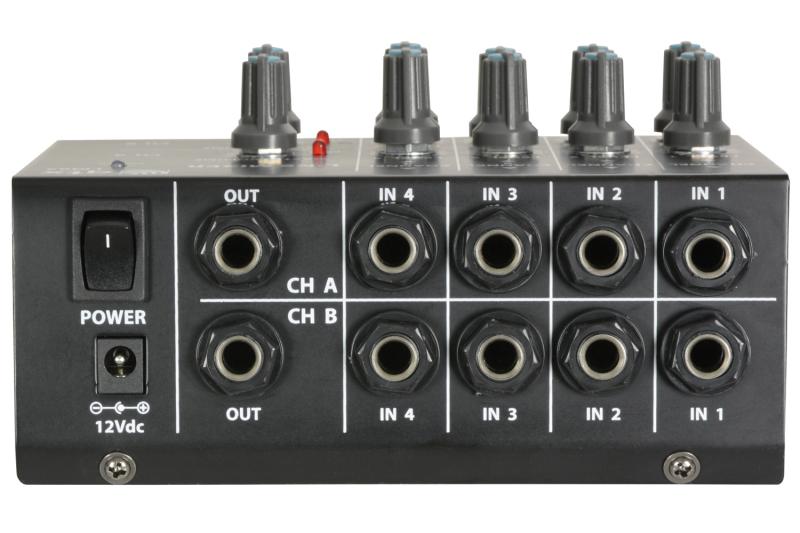

Designed for line-level audio sources or musical instruments with 8 x 6.3mm jack inputs and 2 x 6.3mm jack outputs.

Portable & Lightweight Design

Weighs just 621g (without battery) and measures 150 x 108 x 64mm – compact enough for on-the-go setups or tight studio spaces.

Clear Audio Performance

Delivers a professional 4dB output level (up to 8dB max), with 20k Ohms input impedance and 600 Ohms output impedance for clean signal flow.

Other products in Mixers

4 Channel Microphone Mixer

MICMIXER4

1IN STOCK

Check out our newsletter
for latest offers & updates

ATC Supplies accepts
payments via Stripe®

Log In

Email Address

EXISTING CUSTOMERS

Use this form to log in to your account as usual.

NEW CUSTOMERS

ATC Supplies offers trade discounts to registered users, so click here if you wish to create a full account.

Note that new accounts may take 48 hours to verify and activate.

If you wish to purchase items in a shorter timeframe, you can tick the box below for Express Checkout, however please note that member prices and trade discounts will not be available.

I am logging in only for an Express Checkout

Confirm Password

Passwords must be 6 or more characters and must contain at least one uppercase character

Name
Company Name
Contact Number
Address Line 1
Address Line 2
County

Please indicate your main interest(s):

TV/Satellite

CCTV

Public Address

I.T.

Are you a

Reseller

Installer

Neither

If you registering as a business and/or trade customer, please provide at least one of the following references:

VAT No. CRO No. PSA No.

Search for Products

Code / Keyword

Additional Search Options:

Inputs	8 x 6.3mm jack
Outputs	2 x 6.3mm jack
Weight	621g (no battery)
Battery	9V battery (PP3 - not supplied)
Power adaptor	12Vdc, 200mA (optional)
Output level	4dB ( 8dB max.)
Input impedance	20k Ohms
Output impedance	600 Ohms
Dimensions	150 x 108 x 64mm
