Signal E93170 TV Wall Mount 37-90 inch tilt & swivel TV bracket Double Arm

TVBE93170		11IN STOCK
Log in for prices

Product Details

Product Details Specification

Signa TVB93170 37-90 Adjustable and Rotary

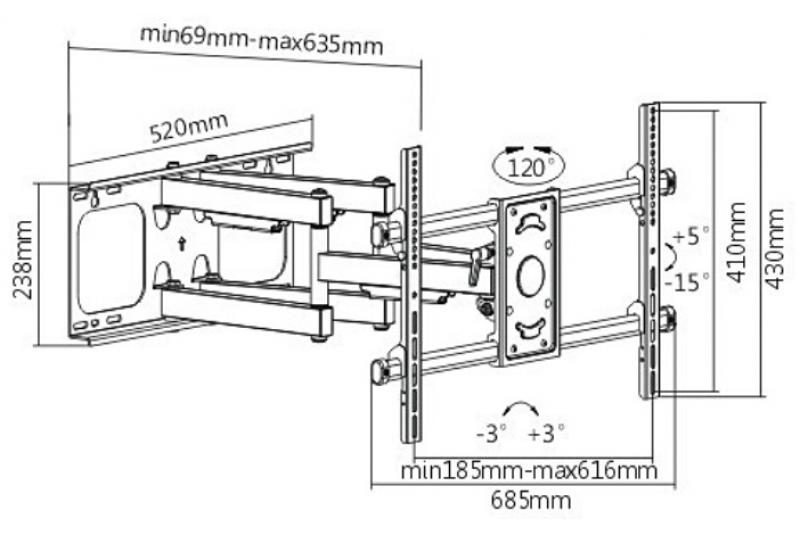

TheTVB93170 wall mount has been designed to place a modern and sleek LCD (OLED) TV on a wall. Its load capacity is 65 kg. The mount enables easy (no tools) tilt adjustment within 5^o ... 15^o, and horizontal rotation within 120^o. It is possible to level the TV within -3 ... 3^o. The TV can be mounted between 69 and 635 mm from the wall.

Key features:

TV screen size range: 37"-90”
Vertical tilt adjustment: -15^o ... 5^o
Horizontal rotation range: 120^o
Leveling: -3^o ... 3^o
Load capacity: 65 kg
Distance from wall: 69-635 mm
Mounting interface: VESA 200x200, 300x300, 400x200, 400x400, 600x400

The smoothness of movement will satisfy the most demanding customers.
