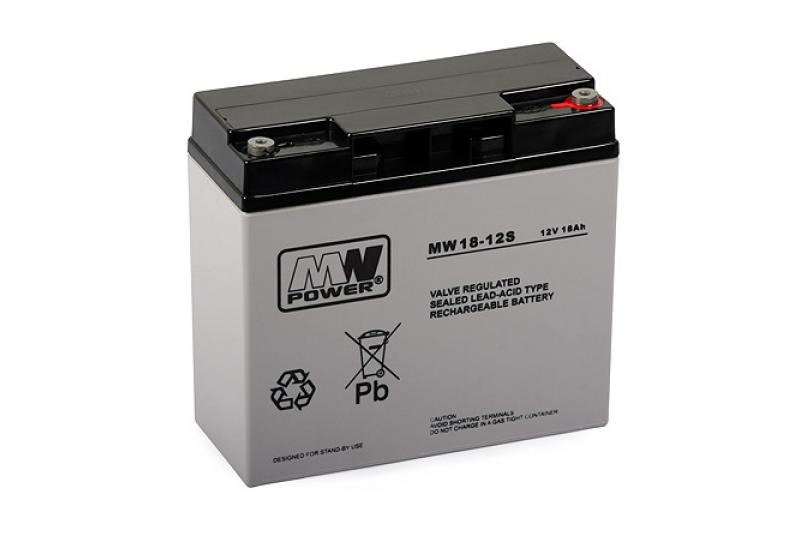

MWS Battery 18-12 12 V, 18 Ah, AGM
The MW 18-12S rechargeable battery is a maintenance-free lead-acid battery (VRLA). Due to Absorbed Glass Mat (AGM) technology, where the electrolyte is placed in fiber glass separators, the battery can be used in almost any position (there is no liquid electrolyte).
The battery is designed for use in buffer power supplies. It can also be used as a power source for portable devices. Thecharging voltage is 14.4-15 VDC.
- VLRA type - completely maintenance free,
- any working position,
- long life,
- high efficiency (power capacity to size ratio),
- low self-discharge rate.
| Rated voltage |
12 V |
| Rated capacity |
18 Ah |
| Internal resistance (fully charged battery) |
17 mΩ |
| Final charging voltage |
Buffer mode: 13.5-13.8 V |
| Cyclic operation: 14.4-15 V |
| Actual capacity vs. temperature |
at 20oC = 100 % |
| at 0oC = 85 % |
| at -15oC = 65 % |
| Złącze |
Top nut: M5 (T13) M5 bolt and nut (T3) – F |
| Max. charge current |
5 A |
| Max. peak discharge current (5 s) |
160 A |
| Operating temperature range |
-20°C...50°C |
| Dimensions |
181x77x167 |
| Weight |
5.25 kg |
