10 Element GSM Aerial with 10M cable (FME)

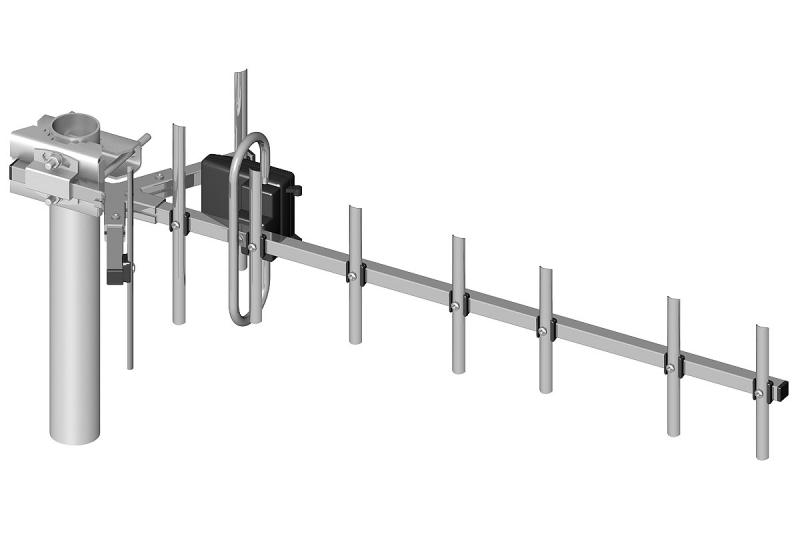

ATK10FME 800-980 MHz is 10-element, outdoor directional antenna designed for receiving and transmitting cellular signals. The gain of the antenna is above 10 dBi, up to 12.8 dBi in the upper part of its 800 MHz to 980 MHz operating band. The features make it ideal for use with cellular Internet modems. The antenna is short-circuited for DC/LF current.

Key features:

Operating band: 800-980 MHz
Gain: up to 12.8 dBi
10 m cable
FME connector
VSWR: max 1.8
Short-circuited for DC/LF
Number of elements: 10

Other products in GSM Aerials

10 Element GSM Aerial with 10M cable (SMA)

ATK10SMA

6IN STOCK

ATK 20/850-960MHz 20-element, 10m cable with SMA plug

ATK20SMA

6IN STOCK

ATK 8 el. GSM Yagi 5M FME

ATKA830

1IN STOCK

GSM Antenna ATK-8/830-960MHz 8-elem. 5m cable & FME

ATK8

5IN STOCK

Check out our newsletter
for latest offers & updates

ATC Supplies accepts
payments via Stripe®

We also accept
payments via PayPal™

Advanced Search

Our Company	Your Account	Additional Info
About Us Newsletters Contact Us ☏ +353 (0) 49 433 8100 \| ✉ [email protected]	Log In Forgot Password Register	Terms & Conditions FAQs Disclaimer

Log In

Email Address

Forgot Password

EXISTING CUSTOMERS

Use this form to log in to your account as usual.

NEW CUSTOMERS

ATC Supplies offers trade discounts to registered users, so click here if you wish to create a full account.

Note that new accounts may take 48 hours to verify and activate.

If you wish to purchase items in a shorter timeframe, you can tick the box below for Express Checkout, however please note that member prices and trade discounts will not be available.

I am logging in only for an Express Checkout

Confirm Password

Passwords must be 6 or more characters and must contain at least one uppercase character

Name
Company Name
Contact Number
Address Line 1
Address Line 2
County

Please indicate your main interest(s):

TV/Satellite

CCTV

Public Address

I.T.

Are you a

Reseller

Installer

Neither

If you are registering as a business and/or trade customer, please provide at least one of the following references:

VAT No. CRO No. PSA No.

Search for Products

Code / Keyword

Additional Search Options:

Name	GSM Antenna ATK10FME 800-980MHz (10-element)
Code	A7016
Operating band [MHz]	800-980
Gain [dBi]	up to 12.8
Cable [m]	10
Connector	FME female
Front/back ratio [dB]	25
Polarization	V
H-beam width [°]	50
V-beam width [°]	58
VSWR	<1.8
Number of elements	10
Impedance [Ω]	50
DC-shorted	Yes
Packaging	cardboard box
Weight [kg]	0.7
Length [m]	0.71
