18 Output CCTV Power Supply

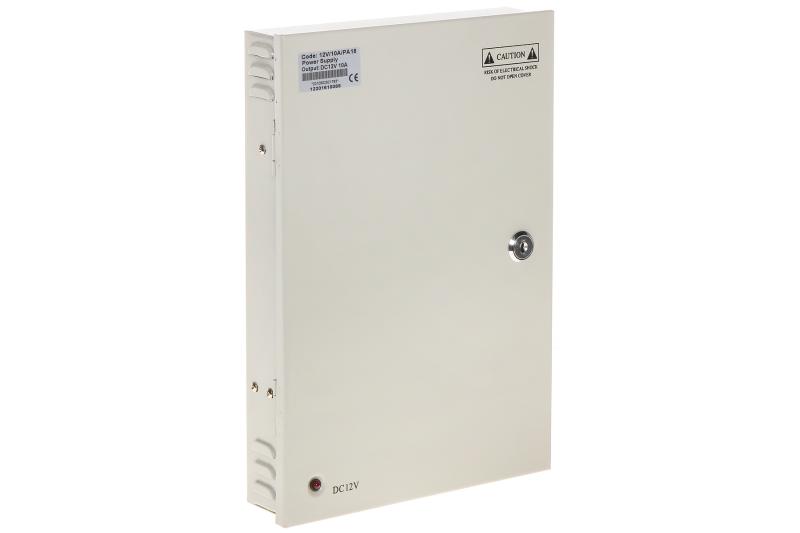

Power supply is fitted in an aesthetic, solidly made metal casing box.

The power supply is stabilized and allows connection of up up to 18 devices with max. current consumption of 560mA for each output.

The output voltage of the adapter is stabilized.

The power supply is stabilized and allows connection of up up to 9 devices with max. current consumption of 880mA for each output.

Max. load of a single output is 1.5A, but the total load is equal 8A and should not be exceeded.

Assuming evenly consumption of all 9 outputs, the max. load per single output is equal 880mA.

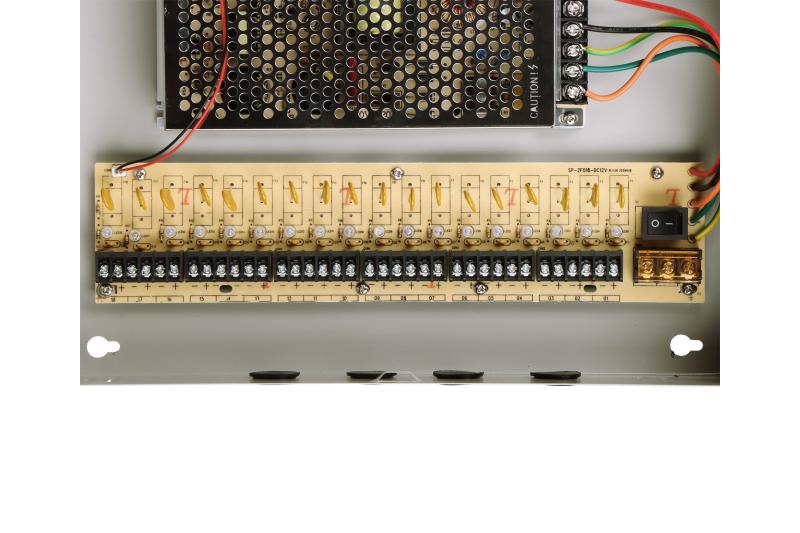

Each power line is protected by a polymer fuse and has a LED indicator informing about output voltage presence.

Caution! The power supply adapter does not have a built-in current limiting.

Attention! If the power supply is used for continuous work (24/7) the current drawn should be less than 80% of the maximum available current.

Please pay attention to ensure adequate ventilation.
