Hikvision DS-3WF02C-5A Outdoor CPE

DS-3WF02C-5AC		123IN STOCK
Log in for prices

Product Details

Product Details Specification

Hikvision 5Ghz 867Mbps 5km Outdoor Wireless CPE

The wireless bridge can be applied in industries, such as wireless video security, railway, transportation, power and other industries, wireless video/data transmission, wireless coverage, carrier wireless backbone network construction, Wi-Fi wireless coverage, rural information construction, and wireless network coverage. The long-distance transmission of the device can guarantee multi-channel HD video transmission.

All gigabit LAN ports
TDMA supported
Quick match through DIP switch
Visualized topology management
Up to 5 km wireless transmission distance

*Please scan the QR code for the Quick Start Guide

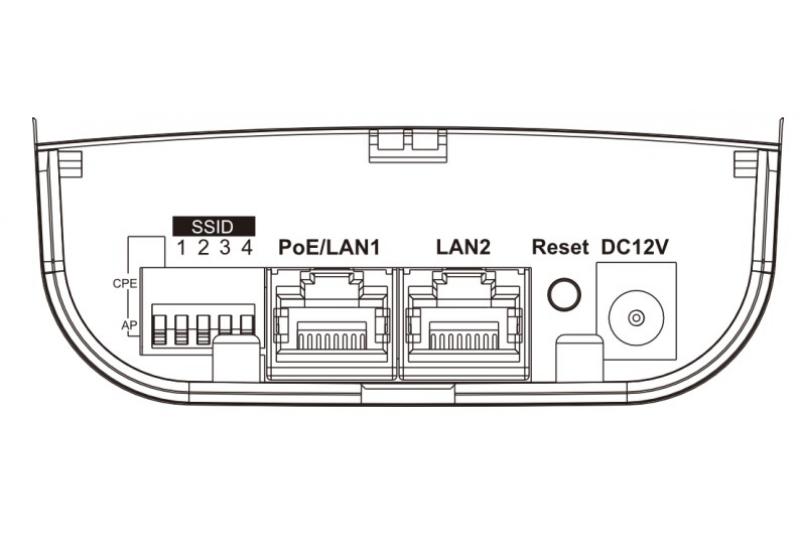

Interface/Button Description

CPE/AP DIP Switch

Switch up or down to set the device as AP or CPE.

SSID

4-character SSID to realize 16 kinds of matching ways by switching up or down. The CPE will connect to the AP when its SSID matches the AP's

PoE/LAN1

The 10/100/1000 Mbps adaptive RJ45 port, also can be used as a PoE port.

LAN2

The 10/100/1000 Mbps adaptive RJ45 port.

Reset

Long press for 4 sec to restore to factory settings.

DC 12V

If the PoE injector is not used for powering on the device, you can use the attached power adapter to connect the device to socket.

Max. Transmission	= 867 Mbps
Rate of Air Interface	= 867 Mbps
Wireless Standard	.
.	IEEE 802.11/a/n/ac
.	5180 to 5240 MHz
Working Frequency Band	5260 to 5320 MHz (DFS)
.	5500 to 5700 MHz (DFS)
.	5745 to 5825 MHz
.	(Note: Available channel may vary with local regulations.)
Transmitting Power	22 dBm (Note: Transmitting power may vary with local regulations.)
Receiving Sensitivity -	58 ± 2 dBm@AC80 -MCS9; -84 ± 2 dBm@AC80 -MCS0
Antenna Gain	9 dBi
Antenna Angle	Beamwidth [3dB] (35°± 5°)
Networking Mode	Point-to-Point, Point-to-Multipoints (less than 4 points recommended)
Hardware Parameters	.
Port Numbers	2 × Gigabit RJ45 ports
LED Indicator	Power indicator, LAN indicator, signal intensity indicator
Reset	Hardware resetting button
Power Supply	12 VDC/1 A Passive PoE; 12 VDC, 1 A
Software Function	.
Application Function	TDMA, DFS, TPC
Channel Width	20/40/80 MHz
Channel Selection	Auto/manual selection
Network Protocol	NTP (network time synchronization), SADP (auto search for IP address),
.	HTTPS (web management), SSH (debugging)
Security Mode	WPA2-PSK
Security Mechanism	Wireless network name hidden
Management	.
Method	Web, iVMS-4200
Upgrade	Web, iVMS-4200
System Log	Syslog, control center information
General	.
Product Dimensions W x H x D	92 mm × 187 mm × 58 mm (3.62" × 7.36" × 2.28")
Package Dimensions W x H x D	132 mm × 228 mm × 91 mm (5.19" × 8.97" × 3.58")
Net Weight	0.307 kg (0.677 lb)
Gross Weight	0.807 kg (1.779 lb)
Packing List	Wireless bridge × 1, power adapter (12 VDC, 1 A) × 1, 100 MB PoE injector ×
.	1, binding tape × 2, quick start guide × 1
Packing Method	Single unit packing
Working Temperature	-30°C to 70°C (-22°F to 158°F)
Working Humidity	5% to 95% (no condensation)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Storage Humidity	5% to 95% (no condensation)
Installation Mode	Pole mounting
Max. Power Consumption	4.5 W (for normal); 2.64 W~2.75 W (with 1 channel 2 M stream IPC); 2.67
.	W~2.75 W (with 1 channel 4 M stream IPC); 2.75 W~2.9 W (with 1 channel 8
.	M stream IPC)
Approval	EMC
.	FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-
.	3-2: 2019, EN 61000-3-3: 2013 A1: 2019, EN 50130-4: 2011 A1: 2014,
.	EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)
Safety	UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC
.	62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 A11: 2009 A1:
.	2010 A12: 2011 A2: 2013, EN 62368-1: 2014 A11: 2017)
Chemistry	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC)
.	No.1907/2006)
Radio	EN 301 893; EN 300 440; EN 62311; EN 301 489-3; EN 301 489-17; FCC Part
.	15.247; FCC Part 15.407; FCC 2.1091
