| Power supply |
100-240Vac, 50/60Hz (IEC) |
| Fuse |
T1AL |
| Inputs : |
mic/line3 x XLR (bal/unbal) |
| Inputs : |
aux2 x L R RCA |
| Input : |
line3.5mm jack to media player |
| Audio sourceInternal |
Bluetooth, USB & FM player |
| Outputs |
L R XLR, Mono 6.3mm jack, Record out (RCA) |
| Emergency control |
24V contacts mute all except channel 1 |
| Phantom power |
20V (switchable channels 1-3) |

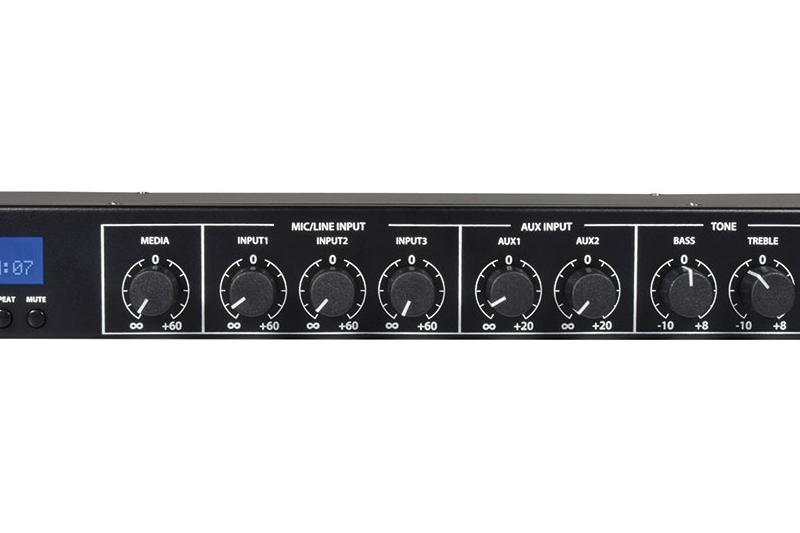

| Controls |
Media, 3 x Mic/Line, 2 x Aux, Treble, Bass, Master level |
| Rear panel controls |
Priority muting level, mic/line and phantom DIP switches |
| Input impedance |
2.2k Ohms (mic/line), 10k Ohms (aux) |
| Frequency response : |
mic20Hz - 18kHz |
| Frequency response : |
line14Hz - 20kHz |
| Frequency response : |
aux10Hz - 23kHz |
| Input sensitivity : |
mic/line-45dBV |
| Input sensitivity : |
aux/line-10dBV |
| Signal to noise ratio : |
mic55dB |
| Signal to noise ratio : |
aux/line60dB |
| THD |
0.05% |
| Dimensions |
482 x 130 x 44mm |
| Weight |
1.43kg |
