IP DOME CAMERAS

DS-2CD2347G3-LI2UY-2.8		OUT OF STOCK
Log in for prices

Product Details

Product Details Specification

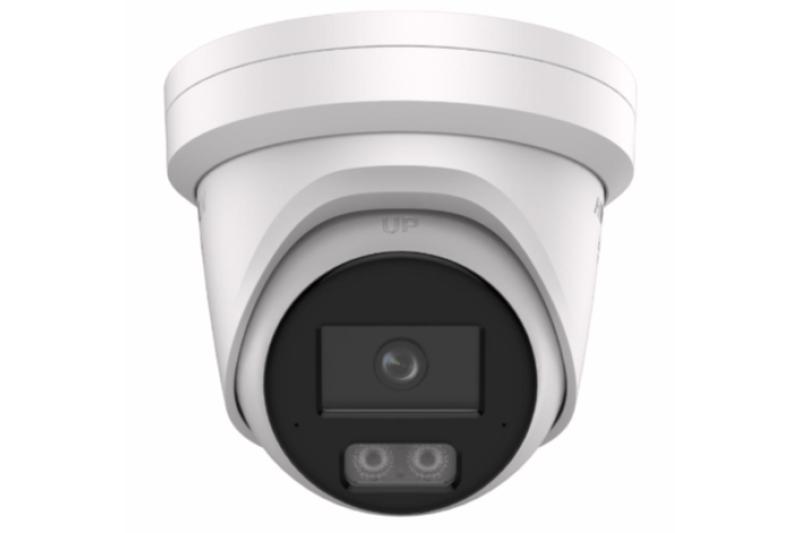

Hikvision 4MP Smart Hybrid IP Dome Camera with ColorVu Fixed Turret

HikAI-ISP for excellent noise reduction effect
24/7 colorful imaging via ColorVu technology
Scene-adaptive WDR
Focus on Person and Vehicle classification based on deep learning
Built-in arrayed dual-microphone for real-time high quality audio security
Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
Water and dust resistant (IP67)

Smart AI Security Camera – Clear, Reliable Protection Day & Night

Protect your home or business with a next-generation AI security camera designed to deliver crystal-clear video, intelligent alerts, and dependable outdoor performance.

Ultra-Clear Footage – Even in Low Light

Powered by advanced HikAI-ISP image processing, the camera significantly reduces noise and improves clarity, ensuring sharp and detailed footage at all times.

Full Colour Night Vision – 24/7

Unlike standard cameras, ColorVu technology captures full-colour video even at night, helping you see important details such as clothing, vehicles, and surroundings.

Smart Human & Vehicle Detection

Built-in AI detection focuses on people and vehicles, helping to reduce false alerts from animals, rain, or moving objects.

Clear Audio with Dual Microphones

The integrated dual-microphone system captures high-quality real-time audio, adding an extra layer of security and evidence.

Intelligent Night Lighting

The Smart Hybrid Light system combines infrared and white light with three lighting modes to automatically adapt to different night-time conditions.

Built for Irish Weather

Designed for outdoor reliability with IP67 weather protection, the camera is resistant to rain, dust, and harsh conditions.

Long-Lasting Anti-Corrosion Design

The NEMA4X anti-corrosion housing provides superior durability, making it ideal for coastal or harsh environments.

Camera
Image Sensor	1/1.8" Progressive Scan CMOS
Max. Resolution	2688 × 1520
Min. Illumination Color:	0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time	1 s to 1/100,000 s
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type	Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV	2.8 mm, horizontal FOV 111.1°, vertical FOV 57.6°, diagonal FOV 138.5°
	4 mm, horizontal FOV 95.2°, vertical FOV 48.3°, diagonal FOV 117.4°
Lens Mount	M16
Iris Type	Fixed
Aperture	F1.0
Depth of Field	2.8 mm: 2.5 m to 8
DORI
DORI	2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m
Illuminator
Supplement Light Type	White Light, IR
Supplement Light Range	Up to 30 m
Smart Supplement Light	Yes
IR Wavelength 850 nm	Yes
Video
Main Stream	50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
	60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream	50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
	60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream	50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
	60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
	*The third stream is supported under certain settings.
Video Compression
Main stream:	H.265/H.264/H.264 /H.265 ,
Sub-stream:	H.265/H.264/MJPEG,
Third stream: H.265/H.264,	H.265/H.264,
	*Third stream is supported under certain settings.
Video Bit Rate	32 Kbps to 8 Mbps
H.264 Type	Baseline Profile, Main Profile, High Profile
H.265 Type	Main Profile
Bit Rate Control	CBR, VBR
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Region of Interest (ROI)	1 fixed region for main stream
Audio
Audio Type -2U:	Mono sound
Audio Compression -2U:	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate	-2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64
	Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Audio Sampling Rate -2U:	8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering -2U:	Yes
Network
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP,
	SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP,
	WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View	Up to 6 channels
API ONVIF	(Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host	Up to 32 users
	3 user levels: administrator, operator, and user
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication
	(EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest
	authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network
	Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS
	1.1/1.2/1.3, host authentication (MAC address)
Network Storage	NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Client	iVMS-4200, Hik-Connect, Hik-Central
Web Browser	Plug-in free live view: Chrome 80 , Firefox 80 , Edge 89 ,
	Local service: Chrome 80 , Firefox 80 , Edge 89
Image Parameters Switch	Yes
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance,
	adjustable by client software or web browser
Day/Night Switch	Day, Night, Auto, Schedule
Image Enhancement	BLC, HLC, 3D DNR, Distortion Correction, Defog
SNR	= 52 dB
Wide Dynamic Range	(WDR) 130 dB
Image Stabilization	EIS
Privacy Mask	4 programmable polygon privacy masks
Interface
Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Audio	Built-in Microphone:
	-2U: Arrayed dual-microphone
Reset Key	Yes
Event
Basic Event	Motion detection (support alarm triggering by specified target types (human and
	vehicle)), video tampering alarm, exception
Smart Event	Scene change detection
Linkage	Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger
	capture, send email
Deep Learning Function
Face Capture	Yes
Perimeter Protection	Line crossing, intrusion, region entrance, region exiting
	Support alarm triggering by specified target types (human and vehicle)
General
Power	12 VDC ± 25%, 0.7 A, max. 8.5 W, Ø 5.5 mm coaxial power plug, reverse polarity
	protection,
	PoE: IEEE 802.3af, Class 3, max. 11 W
Material Cover:	Metal, main body: Metal
Dimension	Ø 138.3 mm × 115.4 mm (Ø 5.4" × 4.5")
Package Dimension	170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
Weight Approx.	750 g (1.7 lb.)
With Package Weight	Approx. 1140 g (2.5 lb.)
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function	Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
Language	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,
	Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,
	Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,
	Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Approval	EMC
	CE-EMC: EN 55032:2015 A1:2020, EN 50130-4:2011 A1:2014, EN IEC
	61000-3-2:2019 A1:2021, EN 61000-3-3:2013 A1:2019 A2:2021,
	RCM: AS/NZS CISPR 32: 2015,
	IC: ICES-003: Issue 7,
	KC: KN32: 2015, KN35: 2015
Safety	UL: UL 62368-1,
	CB: IEC 62368-1: 2014 A11,
	CE-LVD: EN 62368-1: 2014/A11: 2017
Environment	CE-RoHS: 2011/65/EU
Protection IP67:	IEC 60529-2013
Anti-Corrosion Protection	NEMA 4X (NEMA 250-2018)
